Phone - AT&T HARDWARE - AT&T SMARTPHONE
Production: 1600 Amphitheatre Parkway Mountain View United States
Contact Email: 📧 [email protected]
MSRP: 939.99
Best Buy Rating: 4 Stars
Release Date: 2021-10-19
Cellular Capability: 2G, 3G, 4G, 5G
Global Model Features
| Manufacturer Provided Features |
|---|
| • 5G Speed AT&T 5G. Fast. Reliable. Secure. And Nationwide. |
| • Security Protect your personal and sensitive information with layers of Google hardware security1. |
| • Fast Charging It can last beyond 24 hours with the fast charging2, all-day3 5,000 mAh battery. |
| • Camera Capture vivid photos and videos with fine detail and rich colors. |
| • Translation Chat in multiple languages4. Live translate messages automatically, securely, and privately. |
Global Model Specifications
| Description | Value |
|---|---|
| Carrier | AT&T |
| Wireless Technology | 2G, 3G, 4G, 5G |
| Operating System | Android 12 |
| Screen Size | 6.7 Inches |
| Water Resistant | True |
| Phone Memory (RAM) | 12 Gigabytes |
| Series | Google Pixel 6 Series |
| Device Manufacturer | |
| Phone Style | Smartphone |
| Model Number | G8V0U |
| Built-In GPS | True |
| Sensors | Accelerometer, Ambient Light Sensor, Barometer, Fingerprint Sensor, Gyro Sensor |
| Maximum Depth Of Water Resistance | 4.9 Feet |
| Stand-By Time | 10 Days |
| Wireless Charging | True |
| Dust Resistant | True |
| Display Type | Other |
| Screen Resolution | 3120 X 1440 |
| Touch Screen | True |
| Battery Capacity | 5003 Milliampere Hours |
| Bluetooth Enabled | True |
| NFC Technology | True |
| Charging Interface(s) | USB Type C |
| Model Family | Google Pixel 6 Pro |
| SIM Card Slots | Single SIM |
| Wireless Compatibility | Bluetooth, MIMO, Wi-Fi, Wireless A, Wireless G |
| Network Type | GSM |
| Product Height | 6.5 Inches |
| Product Width | 3 Inches |
| Product Depth | 0.4 Inches |
| Product Weight | 7.4 Ounces |
| Manufacturer's Warranty - Parts | 1 Year |
| Manufacturer's Warranty - Labor | 1 Year |
| Internal Carrier | ATT |
Model/Supplier Specific Specifications

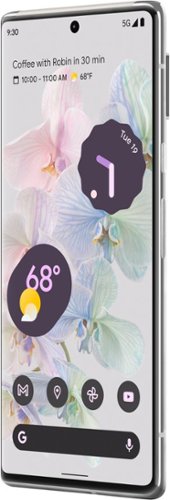

Google Pixel 6 Pro 128GB
| Description | Value |
|---|---|
| Internal Memory | 128 gigabytes |
| Product Name | Google Pixel 6 Pro 128GB |
| Color | Cloudy White |
| Color Category | White |
| UPC | 810029931274 |
Google Pixel 6 Pro 128GB
| Description | Value |
|---|---|
| Internal Memory | 128 gigabytes |
| Product Name | Google Pixel 6 Pro 128GB |
| Color | Stormy Black |
| Color Category | Black |
| UPC | 810029931267 |
Google Pixel 6 Pro 256GB
| Description | Value |
|---|---|
| Internal Memory | 256 gigabytes |
| Product Name | Google Pixel 6 Pro 256GB |
| Color | Stormy Black |
| Color Category | Black |
| UPC | 810029931298 |
| Device Name | Model | Certification Type | Certification Date |
|---|---|---|---|
| Phone | G8V0U | FCC ID | 2021-10-14 |
FCC Application Details
| Equipment | Phone |
| FRN | 0020499539 |
| Grantee Code | A4R |
| Product Code | G8V0U |
| Applicant Business | Google LLC |
| Business Address | 1600 Amphitheatre Parkway , Mountain View, California United States 94043 |
| TCB Scope | B4: Microwave, Millimeter Wave Band and Citizens Broadband Radio Services equipment in 47 CFR Parts 25, 30, 74, 90, 95, 96, 97, 101 (all above 3 GHz) |
| TCB Email | [email protected] |
| Applicant | Angie Du – |
| Applicant Phone | |
| Applicant Fax | 1-650-253-8006 |
| Applicant Email | [email protected] |
| Applicant MailStop | |
| Test Firm | Sporton International Inc. Wensan Laboratory |
| Test Firm Contact | Alex CHEN |
| Test Firm Phone | |
| Test Firm Fax | +886-3-327-0978 |
| Test Firm Email | [email protected] |
| Certified By | Irene Chung – Supervisor |
| BT Design-Controller Subsystem | G8V0U BT Design-Controller Subsystem | Bluetooth  |
2021-08-02 |
| G8V0U | G8V0U | 3GPP (GCF) | 2021-09-03 |
| PIXEL 6 PRO | G8V0U | Colombian CRC | 2021-11-05 |
| G8V0U | G8V0U | PTCRB | N/A |
| G8V0U | G8V0U | Canadian Energy Rating | N/A |
Canadian Energy Specifications
| Rated Battery Energy (wh) | 18.78 |
| Unit Energy Consumption (kwh/yr) | 3.885 |
| Product Class | 2- Low-energy |
| Power In Maintenance Mode (watts) | Low-voltage |
| Power In Standby Mode (watts) | 0.34 |
| G8V0U | G8V0U - GLU0G, GF5KQ - G8V0U | Department of Energy | N/A |
Department of Energy Specifications
| Basic Model Number | G8V0U |
| Individual Model Number Covered by Basic Model | GLU0G, GF5KQ |
| Brand Name s | |
| Product Group Code Description | Low-Energy, Low-Voltage |
| Unit Energy Consumption UEC kWh yr | 3.885 |
| Nameplate Battery Voltage of Test Battery in Volts V | 3.85 |
| Nameplate Battery Energy Capacity of Test Battery in Watt Hours Wh | 18.88 |
| Nameplate Battery Charge Capacity of Test Battery in Ampere Hours Ah | 4.905 |
| Maintenance Mode Power in Watts Pm | 0.34 |
| Standby Mode Power in Watts Psb | 0.02 |
| Battery Discharge Energy in Watt Hours Ebatt | 18.78 |
| 24 Hour Energy Consumption in Watt Hours E24 | 34.76 |
| Duration of the Charge and Maintenance Mode Test in Hours Tcd | 24.0 |
| Is the Certification for this Basic Model Based on a Waiver of DOE s Test Procedure Requirements | No |
| Is the Certification based upon any Exception Relief from an Applicable Standard by DOE s Office of Hearing and Appeals | No |
Documents - google – g8v0u,A4RG8V0U,G8V0U,810029931274,810029931267,810029931298
 |
[pdf]
Test Report
A4RG8V0U TestRpt 6XD 1 20210908 r Google LLC G8V0U Phone g8v0u FCC RADIO TEST REPORT Report No. : FR121931-04I FCC RADIO TEST REPORT FCC ID Equipment Model Name Applicant Standard : A4RG8V0U : Phone : G8V0U, GF5KQ : Google LLC 1600 Amphitheatre Parkway, Mountain View, California, 94043 USA : FCC Part 15 Subpart E 15.407 The product was received on Jun. 10,... lang:en score:78 filesize: 5.32 M page_count: 46 document date: 2021-09-08 |
 |
[pdf]
A4RG8V0U FCC C2PC Request Letter Google LLC G8V0U Phone g8v0u Date: November 12, 2022 Federal Communications Commission Office of Engineering Technology Authori ... ain View, CA 94043 650 253-0000 main Google.com Ref: FCC Class II Permissive change for FCC ID: A4RG8V0U Original Grant date: 9/20/2021 Applicant: Google LLC, Grantee Code: A4R The undersigned her... lang:en score:76 filesize: 209.79 K page_count: 0 document date: 0000-00-00 |
 |
[pdf]
Test Report
A4RG8V0U TestRpt PCE LTE B26 1 Google LLC G8V0U Phone g8v0u FCC RADIO TEST REPORT Report No. : FG121931-04F FCC RADIO TEST REPORT FCC ID Equipment Model Name Applicant Standard : A4RG8V0U : Phone : G8V0U, GF5KQ : Google LLC 1600 Amphitheatre Parkway, Mountain View, California, 94043 USA : FCC 47 CFR Part 2, and 90 S The product was received on Jun. 10,... lang:en score:72 filesize: 5.28 M page_count: 55 document date: 2021-08-16 |
 |
[pdf]
Documentation
A4RG8V0U FCC POA letter Google LLC G8V0U Phone g8v0u Google LLC 1600 Amphitheatre Parkway Mountain View, CA 94043 650 253-0000 main Google.com Date: November 12, 2022 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: A4RG8V0U To Whom It May Concern: I, the undersigned, hereby authorize ... lang:en score:71 filesize: 213 K page_count: 0 document date: 0000-00-00 |
 |
[pdf]
A4RG8V0U Antenna Report Google LLC G8V0U Phone g8v0u Antenna Report FCC ID: A4RG8V0U November 9, 2022 Google LLC 1. Test Method The antenna gains are obtained through measurements in a fully anechoic OTA chamber with a 3D positioner. Measurements are taken in discrete steps in theta and phi direction, data is being recorded using the spectrum analyz... lang:en score:70 filesize: 1.74 M page_count: 0 document date: 0000-00-00 |
 |
[pdf]
Confidentiality Request Letter
A4RG8V0U Confidentiality Letter Google LLC G8V0U Phone g8v0u Google LLC 1600 Amphitheatre Parkway Mountain View, CA 94043 650 253-0000 main Google.com Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 November 12, 2022 Subject: Request for Confidentiality FCC ID: A4RG8V0U To Whom It May Concern: Pursuant to the provisions of ... lang:en score:70 filesize: 251.44 K page_count: 0 document date: 0000-00-00 |
 |
[pdf]
Test Report
A4RG8V0U TestRpt PCE Sub6 27O 1 Google LLC G8V0U Phone g8v0u FCC RADIO TEST REPORT Report No. : FG121931-04I FCC RADIO TEST REPORT FCC ID Equipment Model Name Applicant Standard : A4RG8V0U : Phone : G8V0U, GF5KQ : Google LLC 1600 Amphitheatre Parkway, Mountain View, California, 94043 USA : FCC 47 CFR Part 2, 27 The product was received on Jun. 07, 2021 a... lang:en score:69 filesize: 5.24 M page_count: 54 document date: 2021-08-16 |
 |
[pdf]
Test Report
A4RG8V0U TestRpt PCE Sub6 27Q 1 Google LLC G8V0U Phone g8v0u FCC RADIO TEST REPORT Report No. : FG121931-04K FCC RADIO TEST REPORT FCC ID Equipment Model Name Applicant Standard : A4RG8V0U : Phone : G8V0U, GF5KQ : Google LLC 1600 Amphitheatre Parkway, Mountain View, California, 94043 USA : FCC 47 CFR Part 2, 27 The product was received on Jun. 07, 2021 a... lang:en score:69 filesize: 5.45 M page_count: 55 document date: 2021-08-16 |
 |
[pdf]
Test Report SAR Rating
A4RG8V0U RFExp Mobile Google LLC G8V0U Phone g8v0u FCC RF EXPOSURE REPORT Report No. : FA121931-20 RF Exposure Evaluation Mobile Condition FCC ID Equipment Applicant Standard : A4RG8V0U : Phone : Google LLC 1600 Amphitheatre Parkway, Mountain View, California, 94043 USA : 47 CFR Part 2.1091 We, SPORTON INTERNATIONAL INC has been evaluated in... lang:en score:69 filesize: 544.96 K page_count: 15 document date: 2022-06-30 |
 |
[pdf]
Test Report
A4RG8V0U TestRpt 5GM 1 Google LLC G8V0U Phone g8v0u FCC RADIO TEST REPORT Report No.:FG121931-10 FCC RADIO TEST REPORT FCC ID Equipment Model Name Applicant Standard : A4RG8V0U : Phone : G8V0U, GF5KQ : Google LLC 1600 Amphitheatre Parkway, Mountain View, California, 94043 USA : FCC 47 CFR Part 2, and 30 The product was received on Jul. 08, 2021 ... lang:en score:68 filesize: 5.39 M page_count: 76 document date: 2021-09-30 |
 |
[pdf]
Test Report
A4RG8V0U TestRpt 5GM 1 revised Google LLC G8V0U Phone g8v0u FCC RADIO TEST REPORT Report No.:FG121931-04L FCC RADIO TEST REPORT FCC ID Equipment Model Name Applicant Standard : A4RG8V0U : Phone : G8V0U, GF5KQ : Google LLC 1600 Amphitheatre Parkway, Mountain View, California, 94043 USA : FCC 47 CFR Part 2, and 30 The product was received on Jul. 08, 2021... lang:en score:66 filesize: 4.8 M page_count: 74 document date: 2021-09-17 |
 |
[pdf]
Test Report
A4RG8V0U TestRpt DSS 1 Google LLC GLU0G Phone A4RGLU0G glu0g FCC RADIO TEST REPORT Report No. : FR121931-04A FCC RADIO TEST REPORT FCC ID Equipment Model Name Applicant Standard : A4RG8V0U : Phone : G8V0U, GF5KQ : Google LLC 1600 Amphitheatre Parkway, Mountain View, California, 94043 USA : FCC Part 15 Subpart C 15.247 The product was received on Jun. 10,... lang:en score:62 filesize: 5.35 M page_count: 50 document date: 2021-08-16 |
 |
[pdf]
Test Report
A4RG8V0U TestRpt DTS WLAN 2 4G 1 Google LLC GLU0G Phone A4RGLU0G glu0g FCC RADIO TEST REPORT Report No. : FR121931-04C FCC RADIO TEST REPORT FCC ID Equipment Model Name Applicant Standard : A4RG8V0U : Phone : G8V0U, GF5KQ : Google LLC 1600 Amphitheatre Parkway, Mountain View, California, 94043 USA : FCC Part 15 Subpart C 15.247 The product was received on Jun. 10,... lang:en score:60 filesize: 5.48 M page_count: 53 document date: 2021-08-16 |
 |
[pdf]
Test Report
A4RG8V0U TestRpt PCE Sub6 1 Google LLC G8V0U Phone g8v0u FCC RADIO TEST REPORT Report No. : FG121931-04C FCC RADIO TEST REPORT FCC ID Equipment Model Name Applicant Standard : A4RG8V0U : Phone : G8V0U, GF5KQ : Google LLC 1600 Amphitheatre Parkway, Mountain View, California, 94043 USA : FCC 47 CFR Part 2, 22 H , 24 E , 27 The product was received on M... lang:en score:57 filesize: 5.39 M page_count: 106 document date: 2021-08-16 |
 |
[pdf]
Test Report
A4RG8V0U TestRpt CBE 1 Google LLC GLU0G Phone A4RGLU0G glu0g FCC RADIO TEST REPORT Report No. : FG121931-04G FCC RADIO TEST REPORT FCC ID Equipment Model Name Applicant Standard : A4RG8V0U : Phone : G8V0U, GF5KQ : Google LLC 1600 Amphitheatre Parkway, Mountain View, California, 94043 USA : FCC 47 CFR Part 2, 96 The product was received on Jun. 10, 2021 a... lang:en score:55 filesize: 5.46 M page_count: 58 document date: 2021-08-16 |
 |
[pdf]
Manufacturer Model Name Number OEM FCC ID M T Rating HAC LG K51 LM K500QM6 ZNFL555DL M3 T3 Q70 Q620QM6 ZNFQ620WA M4 Stylo 5 Q720QM6 ZNFQ720QM 6 Q730QM6 ZNFQ730VM Motorola moto e XT2052 1 IHDT56YQ1 g play XT2093 4 IHDT56ZD4 Mobile Hearing Aid Compatibility res cloudinary spectrumobile image upload Spectrum ||| Devices Currently Offered Manufacturer Model Name Apple Apple iPhone 7 iPhone XR Apple iPhone X ... 111 A2160 A2161 A2172 A2176 A2341 A2342 A2481 A2482 A2483 A2484 A2275 G020E G020A G02SE GD1YQ GB7N6 G8V0U LM-K300QM6 LM-X420QM6 OEM Model A1660 A1984 A1984 A1920 A1921 FCC ID BCG-E3085A BCG-E3220A B... lang:es score:51 filesize: 113.55 K page_count: 4 document date: 2021-10-28 |
 |
[pdf]
Devices Currently Offered Cloudinary Mobile Hearing Aid Compatibility res cloudinary spectrumobile image upload Spectrum ||| Devices Currently Offered Manufacturer Model Name Apple Apple iPhone 7 iPhone XR Apple iPhone X ... 160 A2161 A2172 A2176 A2341 A2342 A2481 A2482 A2483 A2484 A2275 A2595 G020E G020A G02SE GD1YQ GB7N6 G8V0U LM-K300QM6 OEM Model A1660 A1984 A1984 A1920 A1921 FCC ID BCG-E3085A BCG-E3220A BCG-E3220A B... lang:es score:51 filesize: 117.84 K page_count: 4 document date: 2022-04-05 |
 |
[pdf]
Test Report
A4RG8V0U TestRpt DTS BLE 1 Google LLC GLU0G Phone A4RGLU0G glu0g FCC RADIO TEST REPORT Report No. : FR121931-04B FCC RADIO TEST REPORT FCC ID Equipment Model Name Applicant Standard : A4RG8V0U : Phone : G8V0U, GF5KQ : Google LLC 1600 Amphitheatre Parkway, Mountain View, California, 94043 USA : FCC Part 15 Subpart C 15.247 The product was received on Jun. 10,... lang:en score:47 filesize: 5.49 M page_count: 105 document date: 2021-08-16 |
 |
[pdf]
User Manual
A4RG8V0U FCC User Manual Revised Google LLC G8V0U g8v0u ... lang:en score:46 filesize: 631.57 K page_count: 4 document date: 0000-00-00 |
 |
[pdf]
A4RG8V0U Tsup 5GM Google LLC G8V0U g8v0u ... lang:en score:39 filesize: 569.39 K page_count: 4 document date: 2021-09-30 |
 |
[pdf]
A4RG8V0U Tsup DXX Google LLC G8V0U g8v0u ... lang:en score:39 filesize: 591.84 K page_count: 4 document date: 2021-08-13 |
 |
[pdf]
A4RG8V0U Tsup CBE Google LLC G8V0U g8v0u ... lang:en score:39 filesize: 639.16 K page_count: 4 document date: 2021-08-13 |
 |
[pdf]
Product Photos Teardown
A4RG8V0U Internal Photos Google LLC G8V0U g8v0u ... lang:en score:39 filesize: 1.24 M page_count: 0 document date: 0000-00-00 |
 |
[pdf]
Confidentiality Request Letter
A4RG8V0U Confidentiality Letter Google LLC G8V0U Phone g8v0u ... lang:en score:38 filesize: 191.23 K page_count: 2 document date: 0000-00-00 |
 |
[pdf]
Confidentiality Request Letter
A4RG8V0U Confidentiality Letter Google LLC G8V0U Phone g8v0u ... lang:en score:38 filesize: 189.95 K page_count: 2 document date: 0000-00-00 |
 |
[pdf]
A4RG8V0U TestRpt DXX Google LLC G8V0U Phone g8v0u ... lang:en score:38 filesize: 1.24 M page_count: 44 document date: 2021-08-13 |
 |
[pdf]
A4RG8V0U RFExp WPT Google LLC G8V0U Phone g8v0u ... lang:en score:38 filesize: 290.62 K page_count: 5 document date: 2021-08-13 |
 |
[pdf]
A4RG8V0U Tsup HAC RF Google LLC G8V0U g8v0u ... lang:en score:38 filesize: 79.33 K page_count: 1 document date: 2021-08-11 |
 |
[pdf]
A4RG8V0U Tsup RFExp WPT Google LLC G8V0U g8v0u ... lang:en score:38 filesize: 120.04 K page_count: 1 document date: 2021-08-13 |
 |
[pdf]
A4RG8V0U Tsup DTS BLE Google LLC G8V0U g8v0u ... lang:en score:38 filesize: 657.37 K page_count: 6 document date: 2021-08-13 |
 |
[pdf]
A4RG8V0U Tsup PCE Sub6 Google LLC G8V0U g8v0u ... lang:en score:38 filesize: 874.04 K page_count: 11 document date: 2021-08-13 |
 |
[pdf]
A4RG8V0U TR UWB Google LLC G8V0U Phone g8v0u ... lang:en score:38 filesize: 5.62 M page_count: 116 document date: 2022-06-29 |
 |
[pdf]
Confidentiality Request Letter
A4RG8V0U Confidentiality Letter Google LLC G8V0U Phone g8v0u ... lang:en score:38 filesize: 248.41 K page_count: 2 document date: 2022-06-28 |
 |
[pdf]
A4RG8V0U RFExp Mobile Google LLC G8V0U Phone g8v0u ... lang:en score:38 filesize: 554.36 K page_count: 16 document date: 2022-12-06 |
 |
[pdf]
A4RG8V0U FCC POA letter Google LLC G8V0U Phone g8v0u ... lang:en score:38 filesize: 155.84 K page_count: 2 document date: 0000-00-00 |
 |
[pdf]
A4RG8V0U UNII 6GHz Attestation Google LLC G8V0U Phone g8v0u ... lang:en score:38 filesize: 149.1 K page_count: 1 document date: 0000-00-00 |
 |
[pdf]
A4RG8V0U FCC POA letter Google LLC G8V0U Phone g8v0u ... lang:en score:38 filesize: 155.61 K page_count: 2 document date: 0000-00-00 |
 |
[pdf]
A4RG8V0U HAC RF Appendix A Google LLC G8V0U Phone g8v0u ... lang:en score:38 filesize: 444.28 K page_count: 5 document date: 2021-08-11 |
 |
[pdf]
A4RG8V0U RFExp Part 0 Google LLC G8V0U Phone g8v0u ... lang:en score:38 filesize: 1.24 M page_count: 33 document date: 2021-08-16 |
 |
[pdf]
Test Report
A4RG8V0U TestRpt CBE 4 Google LLC G8V0U Phone g8v0u FCC RADIO TEST REPORT Report No. : FG121931-04G Lowest Channel / 1RB0 LTE Band 48 / 20MHz 64QAM Lowest Channel / 1RBmax Lowest Channel / FullRB N/A TEL : 886-3-327-3456 FAX : 886-3-328-4978 Page Number : A3-91 of 114 FCC RADIO TEST REPORT Report No. : FG121931-04G Middle Channel / 1RB0 ... lang:de score:38 filesize: 4.44 M page_count: 28 document date: 2021-08-16 |
 |
[pdf]
Test Report
A4RG8V0U TestRpt DSS 2 Google LLC G8V0U Phone g8v0u FCC RADIO TEST REPORT Ant. 3 1Mbps 99 Occupied Bandwidth Plot on Channel 00 Report No. : FR121931-04A 99 Occupied Bandwidth Plot on Channel 39 99 Occupied Bandwidth Plot on Channel 78 N/A Note: The occupied channel bandwidth is maintained within the band of operation for all of the modula... lang:en score:38 filesize: 5.4 M page_count: 38 document date: 2021-08-16 |
 |
[pdf]
Test Report
A4RG8V0U TestRpt CBE 3 Google LLC G8V0U Phone g8v0u FCC RADIO TEST REPORT Report No. : FG121931-04G Lowest Channel / 1RB0 LTE Band 48 / 15MHz QPSK Lowest Channel / 1RBmax Lowest Channel / FullRB N/A TEL : 886-3-327-3456 FAX : 886-3-328-4978 Page Number : A3-64 of 114 FCC RADIO TEST REPORT Report No. : FG121931-04G Middle Channel / 1RB0 ... lang:de score:38 filesize: 5.33 M page_count: 27 document date: 2021-08-16 |
 |
[pdf]
Test Report
A4RG8V0U TestRpt 5GM 6 Google LLC G8V0U Phone g8v0u FCC RADIO TEST REPORT DFT-s-OFDM Module B NR Band n258B Lowest Channel / 50MHz / 64QAM Report No. : FG121931-10 intentionally blank Middle Channel / 50MHz / 64QAM intentionally blank Highest Channel / 50MHz / 64QAM intentionally blank TEL: 886-3-327-0868 FAX: 886-3-327-0855 Page Number : A2... lang:en score:38 filesize: 5.42 M page_count: 34 document date: 2021-09-30 |
 |
[pdf]
Test Report
A4RG8V0U TestRpt 5GM 7 Google LLC G8V0U Phone g8v0u FCC RADIO TEST REPORT Report No. : FG121931-10 DFT-s-OFDM Module A NR Band n260 / 50MHz / QPSK Lowest Band Edge / Full RB Highest Band Edge / Full RB NR Band n260 / 50MHz / 16QAM Lowest Band Edge / Full RB Highest Band Edge / Full RB TEL: 886-3-327-0868 FAX: 886-3-327-0855 Page Number : A... lang:en score:38 filesize: 5.49 M page_count: 37 document date: 2021-09-30 |
 |
[pdf]
Test Report
A4RG8V0U TestRpt 5GM 9 Google LLC G8V0U Phone g8v0u FCC RADIO TEST REPORT Report No. : FG121931-10 DFT-s-OFDM Module A NR Band n261 / 50MHz / QPSK Lowest Band Edge / Full RB Highest Band Edge / Full RB NR Band n261 / 50MHz / 16QAM Lowest Band Edge / Full RB Highest Band Edge / Full RB TEL: 886-3-327-0868 FAX: 886-3-327-0855 Page Number : A... lang:en score:38 filesize: 5.4 M page_count: 37 document date: 2021-09-30 |
 |
[pdf]
Test Report
A4RG8V0U TestRpt 5GM 3 Google LLC G8V0U Phone g8v0u FCC RADIO TEST REPORT Report No. : FG121931-10 DFT-s-OFDM Module B NR Band n258A Lowest Channel / 50MHz / QPSK Lowest Channel / 50MHz / 16QAM Middle Channel / 50MHz / QPSK Middle Channel / 50MHz / 16QAM Highest Channel / 50MHz / QPSK Highest Channel / 50MHz / 16QAM TEL: 886-3-327-0868 FAX:... lang:en score:38 filesize: 5.35 M page_count: 33 document date: 2021-09-30 |
 |
[pdf]
Test Report
A4RG8V0U TestRpt 5GM 5 Google LLC G8V0U Phone g8v0u FCC RADIO TEST REPORT Report No. : FG121931-10 Spurious emission between 18GHz to 40GHz worst case plot is reported as following. DFT-s-OFDM Module A NR Band n258B QPSK 18-40GHz Lowest Channel / 50MHz intentionally blank Middle Channel / 50MHz intentionally blank Highest Channel / 50MHz Rem... lang:en score:38 filesize: 5.36 M page_count: 32 document date: 2021-09-30 |
 |
[pdf]
Test Report
A4RG8V0U TestRpt 5GM 8 Google LLC G8V0U Phone g8v0u FCC RADIO TEST REPORT DFT-s-OFDM Module B NR Band n260 Lowest Channel / 50MHz / 64QAM Report No. : FG121931-10 intentionally blank Middle Channel / 50MHz / 64QAM intentionally blank Highest Channel / 50MHz / 64QAM intentionally blank TEL: 886-3-327-0868 FAX: 886-3-327-0855 Page Number : A25... lang:en score:38 filesize: 5.35 M page_count: 35 document date: 2021-09-30 |
 |
[pdf]
Test Report
A4RG8V0U TestRpt 5GM 2 Google LLC G8V0U Phone g8v0u FCC RADIO TEST REPORT Report No. : FG121931-10 Spurious emission between 18GHz to 40GHz worst case plot is reported as following. DFT-s-OFDM Module A NR Band n258A QPSK 18-40GHz Lowest Channel / 50MHz Middle Channel / 50MHz Highest Channel / 50MHz intentionally blank Remark: In band and out ... lang:en score:38 filesize: 5.26 M page_count: 32 document date: 2021-09-30 |
 |
[pdf]
Test Report
A4RG8V0U TestRpt 5GM 4 Google LLC G8V0U Phone g8v0u FCC RADIO TEST REPORT Report No. : FG121931-10 DFT-s-OFDM Module A NR Band n258B / 50MHz / QPSK Lowest Band Edge / 1 RB Highest Band Edge / 1 RB NR Band n258B / 50MHz / 16QAM Lowest Band Edge / 1 RB Highest Band Edge / 1 RB TEL: 886-3-327-0868 FAX: 886-3-327-0855 Page Number : A15 - 6 of ... lang:en score:38 filesize: 5.45 M page_count: 30 document date: 2021-09-30 |
